A cellular automaton is a model of a world with very simple physics. “Cellular” means that the space is divided into discrete chunks, called cells. An “automaton” is a machine that performs computations—it could be a real machine, but more often the “machine” is a mathematical abstraction or a computer simulation.
Automata are governed by rules that determine how the system evolves in time. Usually time is divided into discrete steps, and the rules specify how to compute the state of the world during the next time step based on the current state.
As a trivial example, consider a cellular automaton (CA) with a single cell. The state of the cell is an integer I will represent with the variable xi, where the subscript i indicates that xi is the state of the system during timestep i. As an initial condition, I’ll specify x0 = 0.
Now all we need is a rule. Arbitratily, I’ll pick xi = xi−1 + 1, which says that after each time step, the state of the CA gets incremented by 1. So far, we have a simple CA that performs a simple calculation: it counts.
But this CA is a little bit nonstandard; normally the number of possible states is finite. To bring it into line, I’ll choose the smallest interesting number of states, 2, and another simple rule, xi = (xi−1 + 1) % 2, where % represents the remainder (or modulus) operator.
This CA performs a simple calculation: it blinks. That is, the state of the cell switches between 0 and 1 after every timestep.
Most CAs are deterministic, which means that rules do not have any random elements; given the same initial state, they always produce the same result. There are also nondeterministic CAs, but I will not address them here.
The CA in the previous was 0-dimensional and it wasn’t very interesting. 1-dimensional CAs turn out to be surprisingly interesting.
In the early 1980s Stephen Wolfram published a series of papers presenting a systematic study of 1-dimensional CAs. He identified four general categories of behavior, each more interesting than the last.
To say that a CA has dimensions is to say that the cells are arranged in a contiguous space so that some of them are considered “neighbors.” In one dimension, there are three natural configurations:
The rules that determine how the system evolves in time are based on the notion of a “neighborhood,” which is the set of cells that determines the next state of a given cell. Wolfram’s experiments use a 3-cell neighborhood: the cell itself and its left and right neighbors.
In these experiments, the cells have two states, denoted 0 and 1, so the rules can be summarized by a table that maps from the state of the neighborhood (a tuple of 3 states) to the next state for the center cell. The following table shows an example:
| prev | 111 | 110 | 101 | 100 | 011 | 010 | 001 | 000 |
| next | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 0 |
The row first shows the eight states a neighborhood can be in. The second row shows the state of the center cell during the next timestep. As a concise encoding of this table, Wolfram suggested reading the bottom row as a binary number. Because 00110010 in binary is 50 in decimal, Wolfram calls this CA “Rule 50.”

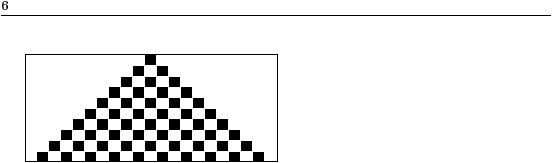

The following figure shows the effect of Rule 50 over 10 time steps:
The first row shows the state of the system during the first timestep; it starts with one cell “on” and the rest “off”. The second row shows the state of the system during the next time step, and so on.
The triangular shape in the figure is typical of these CAs; is it a consequence of the shape of the neighborhood. In one time step, each cell influences the state of one neighbor in either direction. During the next time step, that influence can propagate one more cell in each direction. So each cell in the past has a “triangle of influence” that includes all of the cells that can be affected by it.
To generate the previous figure, I wrote a Python program that uses the NumPy and PyLab packages. NumPy provides a data structure called an array; PyLab provides the plotting functions I used to generate the figure. You can download my code from greenteapress.com/compmod/ca.py.
An array is a multi-dimensional data structure whose elements are all the same type. It is simular to a nested list, but it is usually smaller and faster. The following figure shows why:
[Will someone please send me a nice figure in .fig or a similar format?]
The diagram on the left shows a list of lists of integers; the diagram on the right shows an array of the same integers. Because all of the elements are the same type, they are all the same size, so they are stored contiguously in memory. This arrangement saves space because it stores the elements directly rather than by reference. It saves time because the location of an element can be computed directly from the indices; there is no need to follow a series of references.
Here is a definition of a CA that uses an array to store the states of the cells:
from numpy import *
import pylab
class CA(object):
def __init__(self, n=100):
self.n = n
self.m = n*2 + 1
self.array = zeros((n, self.m), dtype=int8)
self.array[0, self.m/2] = 1
self.next = 1
self.table = make_table()
n is the number of rows in the array, which is the number of timesteps we will compute. m is the number of columns, which is the number of cells. At least to get started, we will implement a finite sequence of cells.
zeros is provided by NumPy; it creates a new array with the given dimensions, n by m. Arrays can have any number of dimensions, but let’s start small. dtype stands for “data type,” and is specifies the type of the array elements. int8 is an 8-bit integer, so we are limited to 256 states, but that’s no problem: we only need two.
Array indexing is similar to list indexing. The line
self.array[0, self.m/2] = 1
turns the cell in the middle of the first row on. The rest of the array is all zero.
The attribute next keeps track of the next row of the array—the one that will be filled in during the next timestep.
make_table builds a dictionary that maps from the state
of the neighborhood to the next state of the middle cell:
def make_table():
d = {}
d[1,1,1] = 0
d[1,1,0] = 0
d[1,0,1] = 1
d[1,0,0] = 1
d[0,1,1] = 0
d[0,1,0] = 0
d[0,0,1] = 1
d[0,0,0] = 0
return d
This example is the table for Rule 50.
CA objects provide a method named step that computes the next state of the CA:
def step(self):
"""execute one time step by computing the next row of the array"""
i = self.next
self.next += 1
for j in xrange(1,self.m-1):
neighborhood = tuple(self.array[i-1, j-1:j+2])
self.array[i,j] = self.table[neighborhood]
i indicates the row of the matrix, which is the timestep we are about to compute. j loops through the cells, skipping the first and last, which are always off.
Arrays support slice operations, so self.array[i-1, j-1:j+2] gets three elements from row i-1. The last line looks up the neighborhood tuple in the table to get the next state and stores it in the array.
Array indexing is constant time, so step is linear in n. Filling in the whole array is O(nm).
You can read more about NumPy and arrays at scipy.org/Tentative_NumPy_Tutorial.
CA objects also provide a method named draw that uses PyLab to display a graphical representation of the evolution of the CA. The graph is 2-D because it shows the state of the CA over time (not to be confused with the 2-D CAs we will see in the next chapter.
def draw(self):
pylab.gray()
pylab.pcolor(-flipud(self.array))
pylab.axis([0, self.m, 0, self.n])
pylab.xticks([])
pylab.yticks([])
gray tells PyLab to use a grayscale color map; pcolor generates a “pseudocolor” plot that shows a rectangle for each element in the array, with a color that corresponds to the value of the element. Since the elements of the array are 0 and 1, the colors are black and white.
flipup stands for “flip up-down;” it flips the array so that row 0 is at the time and time flows down, which is the convention for these plots. Negating the elements of the array makes 1 black and 0 white, which is also the convention.
axis sets the bounds of the display to fit the dimensions of the array. xticks and yticks specify where the labels and tick-marks should be on the axes; the empty list means that we don’t want any ticks at all.
Download my CA implementation from greenteapress.com/compmod/ca.py and add a new class called CAwrap that extends CA so that the cells are arranged in a ring.
Hint: you might find it useful to add a column of “ghost cells” to the array.
Wolfram proposed that the behavior of CAs can be grouped into four classes. Class 1 contains the simplest (and least interesting) CAs, the ones that evolve from almost any starting condition to the same uniform pattern. As a trivial example, Rule 0 always generates an empty pattern after one time step.
Rule 50 is an example of Class 2. It generates a simple pattern with nested structure; that is, the pattern contains many smaller versions of itself. Rule 18 makes the nested structure even clearer; here is what it looks like after 64 timesteps:
This pattern resembles the Sierpiński triangle, which you can read about at wikipedia.org/wiki/Sierpinski_triangle.
Some Class 2 CAs generate patterns that are intricate and aesthetic, but compared to Classes 3 and 4, they are relatively simple.
Rule 30 is an example of Class 3; here is what it looks like after 100 timesteps:
There is a repeating pattern along the left boundary; in the center and right there are triangles in various sizes, but if there is a pattern, it is hard to see. In fact, if you think it looks completely random, you may be right.
For example, if you take the center column and treat it as a sequence of bits, it is hard to distinguish from a truly random sequence. It passes many of the statistical tests people use to test whether a sequence of bits is random. In fact, the the computer algebra system Mathematica uses the Rule 30 CA as a random-number generator. This choice is not a coincidence: Wolfram conceived and led the development of Mathematica.
Programs that produce random-seeming numbers are called pseudo-random number generators (PRNGs). They are not considered truly random because
Modern PRNGs produce sequences that are statistically indistinguishable from random, and they can be implemented with with periods so long that the universe will collapse before they repeat. The existence of these generators raises the question of whether there is any real difference between a good quality pseudo-random sequence and a sequence generated by a “truly” random process. In A New Kind of Science, Wolfram argues that there is not (pages 315–326).
This exercise asks you to implement and test several PRNGs.
The existence of Class 3 CAs is surprising. To understand how surprising, it is useful to consider the philosophical stance called determinism (see wikipedia.org/wiki/Determinism). Most philosophical stances are hard to define precisely because they come in a variety of flavors. I often find it useful to define them with a list of statements ordered from weak to strong:
My goal in constructing this range is to make D1 so weak that virtually everyone would accept it, D4 so strong that almost no one would accept it, with intermediate statements that some people accept.
The center of mass of world opinion swings along this range in response to historical developments and scientific discoveries. Prior to the scientific revolution, many people regarded the working of the universe as fundamentally unpredictable or controlled by supernatural forces. After the triumphs of Newtonian mechanics, some optimists came to believe something like D4; for example, in 1814 Pierre-Simon Laplace wrote
We may regard the present state of the universe as the effect of its past and the cause of its future. An intellect which at a certain moment would know all forces that set nature in motion, and all positions of all items of which nature is composed, if this intellect were also vast enough to submit these data to analysis, it would embrace in a single formula the movements of the greatest bodies of the universe and those of the tiniest atom; for such an intellect nothing would be uncertain and the future just like the past would be present before its eyes.
This “intellect” came to be called “Laplace’s Demon. 1”
Discoveries in the 19th and 20th centuries gradually dismantled this hope. The thermodynamic concept of entropy, radioactive decay and quantum mechanics posed successive challenges to strong forms of determinism.
In the 1960s chaos theory showed that in some deterministic systems prediction is only possible over short time scales, limited by the precision of measurements of initial conditions.
Most of these systems were continuous in space (if not time) and nonlinear, so the complexity of their behavior was not entirely suprising. Wolfram’s demonstration of complex behavior in simple cellular automata is more surprising—and disturbing, at least to a classical world view.
So far I have focused on scientific challenges to determinism, but the longest-standing objection is the conflict between determinism and human free will. Complexity science provides an approach that may resolve this apparent conflict, but I will stop there for now.
If you agree that Class 3 CAs are surprising, then Class 4 will blow your mind. It turns out that several 1-D CAs, most notably Rule 110, are Turing complete, which means that they can compute any computable function. This property, also called universality, was proved by Matthew Cook in 1998.
Here is a what Rule 110 looks like with an initial condition of a single cell and 100 timesteps:
At this time scale it is not apparent that anything special is going on. There are some regular patterns but also some features that are hard to characterize.
Here is a bigger picture, starting with a random initial condition and 600 timesteps:
After about 100 steps the background settles into a simple repeating pattern, but there are a number of persistent structures that appear as disturbances in the background. Some of these structures are stable, so they appear as vertical lines. Others translate in space, appearing as diagonals with different slopes, depending on how many time steps they take to shift by one column. These structures are sometimes called spaceships.
Collisions between spaceships yield different results depending on the types of the spaceships and the phase they are in when the collide. Some collisions annihilate both ships; others leave one ship unchanged; still others yield one or more ships of different types.
These collisions are the basis of computation in a Rule 110 CA. If you think of spaceships as signals that propagate on wires, and collisions as gates that compute logical operations like AND and OR, you can get a sense of what it means to perform a computation. To get a sense of how Cook proved the universality of Rule 110, see wikipedia.org/wiki/Rule_110_cellular_automaton
This exercise asks you to experiment with Rule 110 and see how many spaceships you can find.
To understand universality, we have to understand computability theory, which is about models of computation and what they compute.
One of the most general models of computation is the Turing machine, which is an abstract computer proposed by Alan Turing in 1936. A Turing machine is a 1-D CA, infinite in both directions, augmented with a read-write head. At any time, the head is positioned over a single cell. It can read the state of that cell (usually there are only two states) and it can write a new value into the cell.
In addition, the machine has a register, which records which of a finite number of states the machine is in, and a table of rules. For each machine state and cell state, the table specifies an action. Actions can include modifying the cell the head is over and moving one cell to the left or right.
A Turing machine is not a practical design for a computer, but it can be used as a model of common computer architectures. For a given program running on a real computer, it is possible (at least in principle) to construct a Turing machine that performs an equivalent computation.
The Turing machine is useful because it is possible to characterize the set of functions that can be computed by a Turing machine, which is what Turing did. Functions in this set are called Turing computable.
To say that a Turing machine can compute any Turing-computable function is a tautology: it true by definition. But Turing-computability is more interesting than that.
It turns out that just about every reasonable model of computation anyone has come up with is Turing complete; that is, it can compute exactly the same set of functions as the Turing machine. Some of these models, like lamdba calculus, are very different from a Turing machine, so their equivalence is surprising.
This observation led to the Church-Turing Thesis, which is essentially a definition of what it means to be computable. The “thesis” is that Turing-computability is the right, or at least natural, definition of computability, because it describes the power of such a diverse collection of models of computation.
The Rule 110 CA is yet another model of computation, and remarkable for its simplcity. That it, too, turns out to be universal lends support to the Chuch-Turing Thesis.
In A New Kind of Science, Wolfram states a variation of this thesis, which he calls the “principle of computational equivalence:”
Almost all processes that are not obviously simple can be viewed as computations of equivalent sophistication.More specifically, the principle of computational equivalence says that systems found in the natural world can perform computations up to a maximal (“universal”) level of computational power, and that most systems do in fact attain this maximal level of computational power. Consequently, most systems are computationally equivalent2.
Applying these definitions to CAs, Classes 1 and 2 are “obviously simple.” It may be less obvious that Class 3 is simple, but in a way perfect randomness is as simple as perfect order; complexity happens in between. So Wolfram’s claim is that Class 4 behavior is common in the natural world, and that almost all of the systems that manifest it are computationally equivalent.
Wolfram holds that his principle is a stronger claim than the Church-Turing Thesis because it is about the natural world rather than abstract models of computation. But saying that natural processes “can be viewed as computations” strikes me as a statement about model selection more than a hypothesis about the natural world.
Also, with qualifications like “almost” and undefined terms like “obviously simple,” his hypothesis may be unfalsifiable. Falsifiability is an idea from the philosophy of science, proposed by Karl Popper as a demarcation between scientific hypotheses and pseudoscience. A hypothesis is falsifiable if there is an experiment, at least in the realm of practicality, that would contradict the hypothesis if it were false.
For example, the claim that all life on earth is descended from a common ancestor is falsifiable because it makes specific predictions about similarities in the genetics of modern species (among other things). If we discovered a new species whose DNA was almost entirely different from ours, that would contradict (or at least bring into question) the theory of universal common descent.
On the other hand, “special creation,” the claim that all species were created in their current form by a supernatural agent, is unfalsifiable because there is nothing that we could observe about the natural world that would contradict it. Any outcome of any experiment could be attributed to the will of the creator.
Unfalsifiable hypotheses can be appealing, at first, because they are impossible to refute. If your goal is never to be proved wrong, you should choose hypotheses that are as unfalsifiable as possible.
But if your goal is to make reliable predictions about the world—and this is at least one of the goals of science—then unfalsifiable hypotheses are useless. The problem is that they have no consequences (if they had consequences, they would be falsifiable).
For example, if the theory of special creation were true, what good would it do me to know it? It wouldn’t tell me anything about the creator except that he has an “inordinate fondness for beetles. 3” And unlike the theory of common descent, which informs many areas of science and engineering, it would be of no use for understanding the world or acting in it.
Falsifiability is an appealing and useful idea, but among philosophers of science it is not generally accepted as a solution to the demarcation problem, as Popper claimed.
Read wikipedia.org/wiki/Falsifiability and answer the following questions.
Some cellular automata are primarily mathematical artifacts. They are interesting because they are surprising, or useful, or pretty, or because they provide tools for creating new mathematics (like the Church-Turing thesis).
But it is not clear that they are models of physical systems. And if they are, they are highly abstracted, which is to say that they are not very detailed or realistic. For example, some species of cone snail4 produce a pattern on their shells that resembles the patterns generated by cellular automata. So it is natural to imagine that a CA is a model of the mechanism that produces patterns on shells as they grow. But, at least initially, it is not clear how the elements of the model (cells, communication between neighbors, rules) correspond to the elements of a growing snail.
For conventional physical models, being realistic is a virtue, at least up to a point. If the elements of a model correspond to the elements of a physical system, there is an obvious analogy between the model and the system. In general, we expect a model that is more realistic to make better predictions and to provide more believable explanations.
Of course, this is only true up to a point. Models that are more detailed are harder to work with, and less likely to be amenable to analysis. At some point, a model can be so complex that it is easier to experiment with a real system.
At the other extreme, simple models can be compelling exactly because they are simple.
Simple models offer a different kind of explanation than detailed models. With a detailed model, the argument goes something like this: “We are interested in physical system S, so we construct a detailed model, M, and show by analysis and simulation that M exhibits a behavior, B, that is similar (qualitatively and/or quantitatively) to an observation of the real system, O. So why does O happen? Because S is similar to M, and B is similar to O, and we can prove that M leads to B.”
With simple models we can’t claim that S is similar to M, because it isn’t. Instead, the argument goes like this: “There is a set of models, M0, M1, ... that share a common set of features, F0, F1, .... Any model that has these features will exhibit some behavior, B. M0 is the simplest model that has all of these features and exhibits B. If we make an observation, O, that resembles B, one way to explain it is to show that the system, S, has the minimum set of features, in common with M0, that produce B.”
For this kind of argument, adding more features doesn’t help. Making the model more realistic doesn’t make the model more reliable; it only obscures the difference between the essential features that cause O and the incidental features that are particular to S.
