How to Think Like a Computer Scientist

Chapter 19
Queues
This chapter presents two ADTs: the Queue and the Priority Queue.
In real life, a queue is a line of customers waiting for service
of some kind. In most cases, the first customer in line is the
next customer to be served. There are exceptions, though.
At airports, customers whose flights are leaving soon
are sometimes taken from the middle of the queue. At
supermarkets, a polite customer might let someone with only a
few items go first.
The rule that determines who goes next is called the
queueing policy. The simplest queueing policy is
called FIFO, for "firstinfirstout." The most general
queueing policy is priority queueing, in which each customer
is assigned a priority and the customer with the highest priority
goes first, regardless of the order of arrival. We
say this is the most general policy because the priority
can be based on anything: what time a flight leaves; how many
groceries the customer has; or how important the customer is.
Of course, not all queueing policies are "fair," but
fairness is in the eye of the beholder.
The Queue ADT and the Priority Queue ADT have the same set
of operations. The difference
is in the semantics of the operations: a queue uses the FIFO
policy; and a priority queue (as the name suggests) uses the
priority queueing policy.
19.1 The Queue ADT
The Queue ADT is defined by the following operations:
 __init__
 Initialize a new empty queue.
 insert
 Add a new item to the queue.
 remove
 Remove and return an item from the queue. The item
that is returned is the first one that was added.
 isEmpty
 Check whether the queue is empty.
19.2 Linked Queue
The first implementation of the Queue ADT we will look at is
called a linked queue because it is made up of linked
Node objects. Here is the class definition:
class Queue:
def __init__(self):
self.length = 0
self.head = None
def isEmpty(self):
return (self.length == 0)
def insert(self, cargo):
node = Node(cargo)
node.next = None
if self.head == None:
# if list is empty the new node goes first
self.head = node
else:
# find the last node in the list
last = self.head
while last.next: last = last.next
# append the new node
last.next = node
self.length = self.length + 1
def remove(self):
cargo = self.head.cargo
self.head = self.head.next
self.length = self.length  1
return cargo
The methods isEmpty and remove are identical to the
LinkedList methods isEmpty and removeFirst.
The insert method is new and a bit more complicated.
We want to insert new items at the end of the list.
If the queue is empty, we just set head to refer to the new node.
Otherwise, we traverse the list to the last node and
tack the new node on the end. We can identify the last node because
its next attribute is None.
There are two invariants for a properly formed Queue object.
The value of length should be the number of nodes in the
queue, and the last node should have next equal to
None. Convince yourself that this method preserves
both invariants.
19.3 Performance characteristics
Normally when we invoke a method, we are not concerned with the
details of its implementation. But there is one "detail"
we might want to know the performance characteristics of the
method. How long does it take, and how does the run time change
as the number of items in the collection increases?
First look at remove.
There are no loops or function calls here, suggesting that
the runtime of this method is the same every time. Such a method
is called a constant time operation.
In reality, the method might be slightly faster
when the list is empty since it skips the body of the conditional,
but that difference is not significant.
The performance of insert is very different.
In the general case, we have to
traverse the list to find the last element.
This traversal takes time proportional to the length of the
list. Since the runtime is a linear function of the length,
this method is called linear time. Compared to
constant time, that's very bad.
19.4 Improved Linked Queue

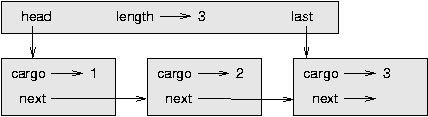

We would like an implementation of the Queue ADT that can
perform all operations in constant time. One way to
do that is to modify the Queue class so that it
maintains a reference to both the first and the last node,
as shown in the figure:
The ImprovedQueue implementation looks like this:
class ImprovedQueue:
def __init__(self):
self.length = 0
self.head = None
self.last = None
def isEmpty(self):
return (self.length == 0)
So far, the only change is the attribute last. It is used in
insert and remove methods:
class ImprovedQueue:
...
def insert(self, cargo):
node = Node(cargo)
node.next = None
if self.length == 0:
# if list is empty, the new node is head and last
self.head = self.last = node
else:
# find the last node
last = self.last
# append the new node
last.next = node
self.last = node
self.length = self.length + 1
Since last keeps track of the last node, we don't have to search
for it. As a result, this method is constant time.
There is a price to pay for that speed. We have to add a special case
to remove to set last to None when the last node is
removed:
class ImprovedQueue:
...
def remove(self):
cargo = self.head.cargo
self.head = self.head.next
self.length = self.length  1
if self.length == 0:
self.last = None
return cargo
This implementation is more complicated than the
Linked Queue implementation, and it is more difficult to demonstrate
that it is correct. The advantage is that we have achieved
the goal both insert and remove are constant time
operations.
As an exercise, write an implementation of the Queue ADT using
a Python list. Compare the performance of this implementation to the
ImprovedQueue for a range of queue lengths.
19.5 Priority queue
The Priority Queue ADT has the same interface as the Queue ADT, but
different semantics. Again, the interface is:
 __init__
 Initialize a new empty queue.
 insert
 Add a new item to the queue.
 remove
 Remove and return an item from the queue. The item
that is returned is the one with the highest priority.
 isEmpty
 Check whether the queue is empty.
The semantic difference is that the item that is removed from the
queue is not necessarily the first one that was added. Rather, it is
the item in the queue that has the highest priority. What the
priorities are and how they compare to each other are not specified by
the Priority Queue implementation. It depends on which items are in
the queue.
For example, if the items in the queue have names, we might choose
them in alphabetical order. If they are bowling scores, we might go
from highest to lowest, but if they are golf scores, we would go from
lowest to highest. As long as we can compare the items in the queue,
we can find and remove the one with the highest priority.
This implementation of Priority Queue has as an attribute
a Python list that
contains the items in the queue.
class PriorityQueue:
def __init__(self):
self.items = []
def isEmpty(self):
return self.items == []
def insert(self, item):
self.items.append(item)
The initialization method, isEmpty, and insert are all
veneers on list operations. The only interesting method is remove:
class PriorityQueue:
...
def remove(self):
maxi = 0
for i in range(1,len(self.items)):
if self.items[i] > self.items[maxi]:
maxi = i
item = self.items[maxi]
self.items[maxi:maxi+1] = []
return item
At the beginning of each iteration, maxi holds the index of the
biggest item (highest priority) we have seen so far. Each time
through the loop, the program compares the ieth item to the champion.
If the new item is bigger, the value of maxi is set to i.
When the for statement completes,
maxi is the index of the biggest item. This item
is removed from the list and returned.
Let's test the implementation:
>>> q = PriorityQueue()
>>> q.insert(11)
>>> q.insert(12)
>>> q.insert(14)
>>> q.insert(13)
>>> while not q.isEmpty(): print q.remove()
14
13
12
11
If the queue contains simple numbers or strings, they are
removed in numerical or alphabetical order, from highest to
lowest. Python can find the biggest integer or string because
it can compare them using the builtin comparison operators.
If the queue contains an object type, it has to provide
a __cmp__ method. When remove uses the >
operator to compare items, it invokes the __cmp__
for one of the items and passes the other as an argument. As
long as the __cmp__ method works correctly, the
Priority Queue will work.
19.6 The Golfer class
As an example of an object with an unusual definition of priority, let's
implement a class called Golfer that keeps track of the
names and scores of golfers. As usual, we start by defining __init__ and __str__:
class Golfer:
def __init__(self, name, score):
self.name = name
self.score= score
def __str__(self):
return "%16s: %d" % (self.name, self.score)
__str__ uses the format operator to put the names
and scores in neat columns.
Next we define a version of __cmp__ where the lowest
score gets highest priority. As always, __cmp__ returns
1 if self is "greater than" other, 1 if self
is "less than" other, and 0 if they are equal.
class Golfer:
...
def __cmp__(self, other):
if self.score < other.score: return 1 # less is more
if self.score > other.score: return 1
return 0
Now we are ready to test the priority queue with the Golfer class:
>>> tiger = Golfer("Tiger Woods", 61)
>>> phil = Golfer("Phil Mickelson", 72)
>>> hal = Golfer("Hal Sutton", 69)
>>>
>>> pq = PriorityQueue()
>>> pq.insert(tiger)
>>> pq.insert(phil)
>>> pq.insert(hal)
>>> while not pq.isEmpty(): print pq.remove()
Tiger Woods : 61
Hal Sutton : 69
Phil Mickelson : 72
As an exercise, write an implementation of the Priority Queue ADT
using a linked list. You should keep the list sorted so that removal
is a constant time operation. Compare the performance of this
implementation with the Python list implementation.
19.7 Glossary
 queue
 An ordered set of objects waiting for a service of
some kind.
 Queue
 An ADT that performs the operations one might perform
on a queue.
 queueing policy
 The rules that determine which member
of a queue is removed next.
 FIFO
 "First In, First Out," a queueing policy in which
the first member to arrive is the first to be removed.
 priority queue
 A queueing policy in which
each member has a priority determined by external factors.
The member with the highest priority is the first to be removed.
 Priority Queue
 An ADT that defines the operations one
might perform on a priority queue.
 linked queue
 An implementation of a queue using a linked
list.
 constant time
 An operation whose runtime does not
depend on the size of the data structure.
 linear time
 An operation whose runtime is a linear
function of the size of the data structure.
Warning: the HTML version of this document is generated from
Latex and may contain translation errors. In
particular, some mathematical expressions are not translated correctly.



How to Think Like a Computer Scientist
